Palm Centro Guts Dissection Pics

Centro Guts PicturesPictures of the disassembled circuitry of the inside of the Palm Centro have been posted online courtesy of the FCC. The images are a required to be submitted as part of the FCC approval process and show a up close, inside look at the device. Read on for the full gallery.

Palm Centro Guts Images
Getting ready to go under the knife.

Palm Centro Pictures
Back cover and battery cavity removed.

Palm Centro Pics

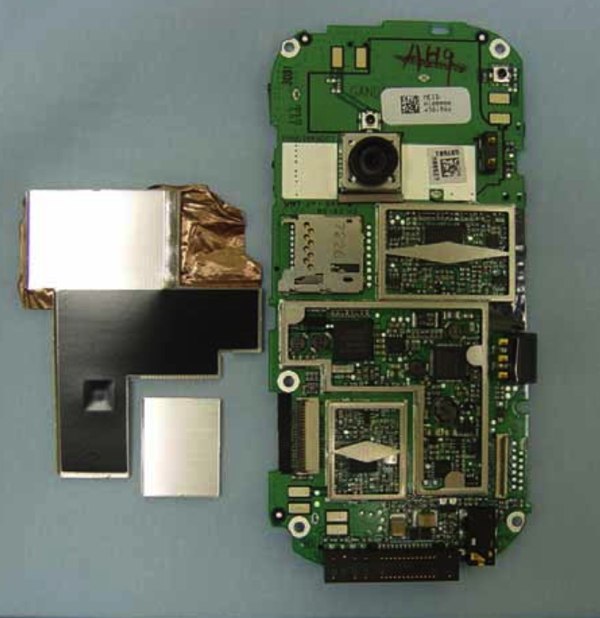

Rear circuit board and shielding.

Palm Centro Images

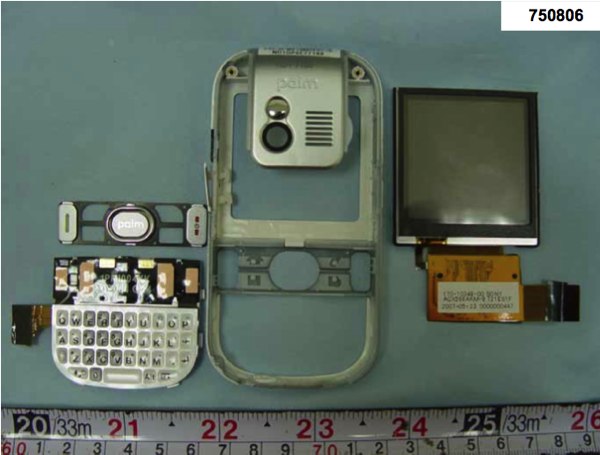

front facia and lcd screen removed.

Palm Centro
Camera and rear speaker array.

Palm Centro Guts
Circuit board closeup.

Palm Centro Dissection
More chips.

Palm Centro Pix
Palm Centro guts up close and personal.

For more information you can read our Palm Centro review, or take a look at the additional FCC documents.

For more "guts galleries" check out: Treo 680, Palm TX, Tungsten T5 and the Treo 600.
